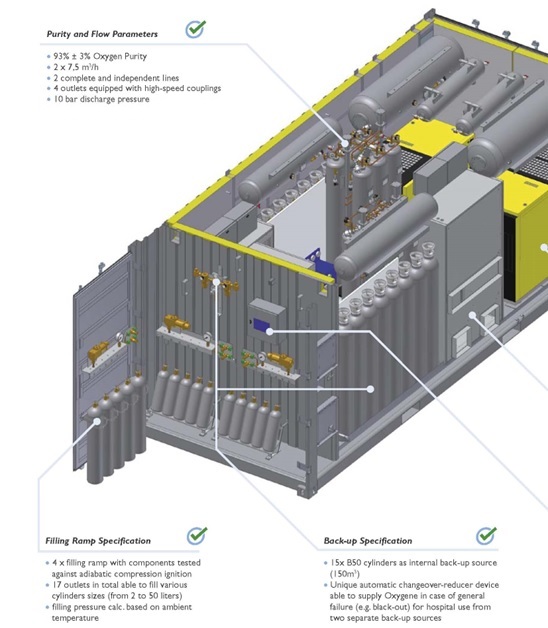

Purity and Flow Parameters:
90% - 95% Oxygen Purity
2 x 7.5 m3/h
2 Complete & Independent Supply Lines
4 Low Pressure Outlets Equipped with High-Speed Couplings
10 Bar Discharge Pressure |
|
Filling Ramp Specification:
4 x Filling Ramp
17 Outlets Total, Fills Cylinders Sizes 2 to 50 Liters
Filling Pressure Calculation Based on Ambient Temperature |
|
Back-up Specification:
15 Cylinders Internal Back-up Source, 150m3
Automatic Changeover Device Supplies Oxygen During Power Black-Outs |
|
Purity Monitoring:
Monitoring of Ambient Air Inside the Container with Low/High Oxygen Level Alarm
Visual/Acoustic Alarm
Radio Alarm
Independent Purity Analysis of Each Supply Line
Outlet Purity Sensing by Paramagnetic Oxygen sensor
CO/CO2/Dew Point Monitoring
8“Color Touch Screen Control
Instant/Cumulative Consumption
Each Supply Line Controlled by a Flow Regulator |
|
Container Parameters:
20-Foot-Long ISO Container, 6.1 m
Cargo Standards 1 TEU
ISO CC, 1C, 1CX
8 x ISO Corners for Securement & Handling
Total Weight < 10 Tons |
|
Ambient Influence Proof Design:
Protected Against Water Penetration; Rain, Pressurized Water Cleaning
Leak-Tight, Insensitive to Dust, Sand & Saline Mist
Mechanical Shocks for Handling or Movement |
|
Environmental Conditions:
Operating Temperature, -32°C to +55°C
Transport & Storage Temperature, -50°C to +70°C
Use & Store Without Geographical Restrictions per STANAG 2895 |
|
Medical Standards for Components:
EN 850, Clamp Type Valve Outlet Connections
ISO/FDIS 10083, Supply Systems for Oxygen Concentrators |
|
Radio and Alarm:
Visual Alarm Embedded on the Outside Wall
…together with Antenna to Transmit Alarms to the Receiver Box |
|
Robust Construction:
Technology Mounted Inside ISO 20’ Container
GAM EG 13 Tests Complaint
Theatre of Operations Compliant with STANAG 2895 |
|
Shipping Options:
Road / Rail / Sea / Air |
